ACC-JTAG-BR

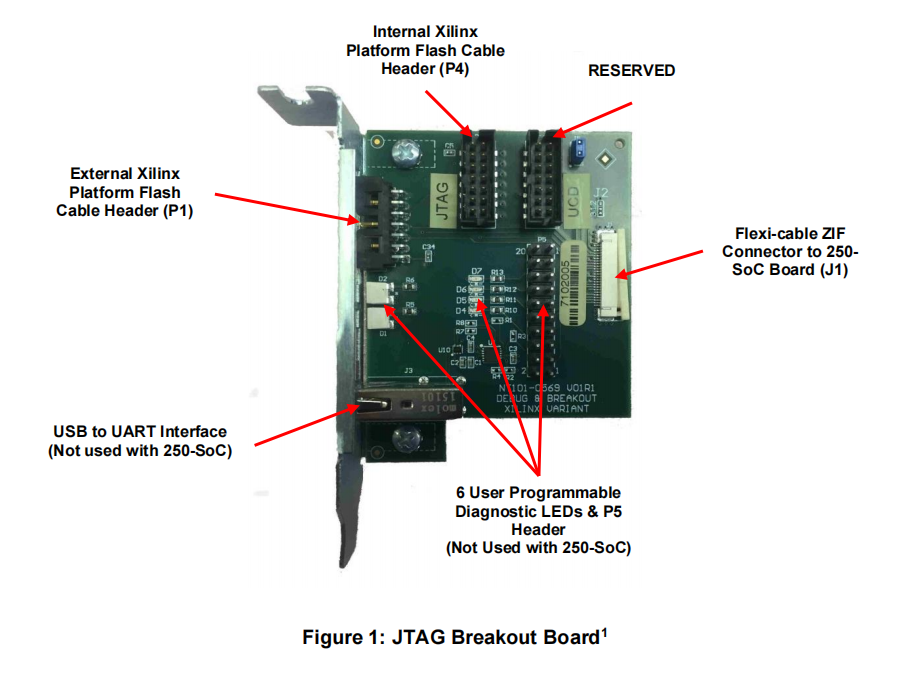

The BittWare JTAG Breakout Board allows connectivity of JTAG Programming Cables to compatible

BittWare FPGA Cards. The JTAG Breakout Board comes fitted to a PCI bracket that allows it to be

installed in an adjacent PCIe slot to the paired BittWare FPGA Card.

The BittWare JTAG Breakout Board has the following features:

• Connectivity to 14-pin JTAG connector standard for JTAG access into the FPGA Card
• Connectivity for optional Push Button on 250-SoC only
• Connectivity for FPGA I2C bus on 250-SoC only
• User FPGA-driven GPIOs on header on 250S+ only
• User FPGA-driven LEDs on 250S+ only
• USB connector for FPGA-driven UART interface on 250S+ only

The BittWare JTAG Breakout Board is compatible with the following JTAG Programming Cables:

• Xilinx Platform Cable USB II
• Xilinx SmartLynq Data Cable
• Diligent JTAG-USB

The BittWare JTAG Breakout Board is compatible with the following BittWare FPGA Cards:

• 250S+
• 250-SoC
